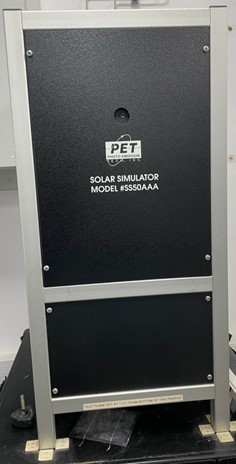

Solar simulator model number - #SS50AAA
Company name – PET (PHOTO EMISSION TECH., INC.)
Solar simulators are commonly used to determine the current-voltage (I-V) characteristics of PV devices. Typically, these work as single-lamp systems with photovoltaic devices placed in designated test areas or as multi-lamp systems based on superposition of light cones.
Specifications:
|
Type of Lamp
|
Xenon Short Arc
|
|
Lamp Power
|
150W
|
|
Max. Illuminated Area
|
2″ (50mm) x 2″ (50mm)
|
|
Light Source
|
Steady State
|
|
Air Mass
|
AM1.5G Standard: AM1.5D or AM1 optional
|
|
Lamp lifetime
|
1500 Hours
|
|
Adjustment Range of Light Intensity
|
100mW/cm2 ±15%
|
|
Simulator Class*
|
AAA
|
|
Spectral Match to all intervals*
|
±25% or better
|
|
Spatial non-uniformity of irradiance*
|
≤ 2% or better
|
|
Short Term Temporal Instability (STI)*
|
≤ 2% or better
|
|
Long Term Temporal Instability (LTI)*
|
≤ 0.5% or better
|
|
Dimensions (Height x Width x Depth)
|
43.2″ (1,098mm) x 14.5″ (368mm) x 20.8″ (529mm)
|
|
Weight
|
65 Lbs. (29.5 Kg)
|
|
The Optimum Working Distance
|
9.4″ (239 mm)
|
|
Phase/Voltage/Frequency
|
Single Phase/110-220AC Volts/50-60Hz
|
|
Max. Power Consumption (W)
|
0.5 KVA
|
